E2 (4E1) Optical Multiplexer
Technical Specification
|
Product Description
Orion Telecom
Networks Inc. offers
E2 (4E1) Optical Multiplexer -
8Mb/s Optical Line Transmission and 2/8 Mbps Digital
Multiplexer. |
|
| |
|
|

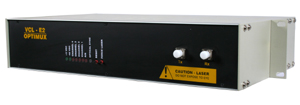

VCL - E2, Optical Multiplexer (4E1)
is an Integrated OLTE and multiplexer / demultiplexer unit,
based on PDH (Plesiochronous Digital Hierarchy) technology. It
multiplexes four 2.048 Mbps (hereafter referred to 2Mbps) E1
tributaries into a single 8 Mbps, E2 stream and then
transports it as an optical signal on a Single Mode, 1300nm
optical fiber cable, without the use of ant signal repeaters
up to a distance of over 50 KM (Optical Loss Budget
³
30dBm). The muldex also does the reverse processing i.e.
demultiplexing a received optical signal into four 2Mbps E1
tributaries. |
2Mbps, E1
Electrical Interface
|
Number |
1 |
Maximum Output Jitter |
£
0.05 UI |
|
Normal Bit Rate |
2048Kbps |
Maximum Input Jitter |
|
Bit Rate Tolerance |
± 50ppm |
20Hz to 93Hz |
1.5UI |
|
Termination Impedance |
120 Ohms |
700Hz to 100Hz |
0.2UI |
|
Line Code |
HDB3 |
Connectivity |
Wire-Wrap Connectors |
|
Frame Structure |
As per G.704 |
Cable |
120 Ohm balanced |
|
Electrical Interface |
As per G.703 |
Permissable Attenuation |
6dB (max) @ 1024 KHz |
|
Return Loss at Input Port |
|
51.2 Khz to 102.4 Khz |
>12dB |
|
102.4KHz to 2048 Khz |
>18dB |
|
2048 Khz to 3072 Khz |
>14dB |
8 Mbps,
Optical Interface
Transmitter
|
Type of
Transmitter |
Class I Laser |
|
Number |
1 |
|
Nominal bit rate |
8.448 Mbps, +/-30PPM kbps |
|
Transmit wavelength |
1310nm |
|
Transmit output |
0dBm to -3dBm (average) |
|
Extinction ratio |
>1:10 |
|
Transmit Spectral Width |
<4nm |
Receiver
|
Number |
1 |
|
Receiver sensitivity |
-37 dBm (typical)
-36 dBm (minimum) |
|
Receiver wavelength |
1310 nm |
|
Operating wavelength range |
1280 - 1335 nm |
|
Reveiver dynamic range |
£
20 dBm |
|
Optical connectors |
FC-PC connector |
Safety
|
Class I Laser |
|
Meets the optical
safety requirements: G.958, IEC-825-1 |
|
Auto Laser Shut
Down, in case of Laser Break |
Power
Supply
|
-48VDC (-40 to -60VDC) Input |
Alarms
|
External
Alarms: Audio and Visual |
Connectors
|
2Mbps ports
Wire-Wrap, Balanced Pair-120 Ohms |
| 8Mbps optical
FC/PC |
The power supply
module accepts-48VDC input and provides 5V output required for the
operation of the card.
External Interfaces & Connectors
VCL Opti-Multiplexer
unit provides the following interfaces to the external world:
- 4, Primary rate 2Mbps & 120 Ohms
balanced E1 interfaces
- 1300nm, Single Mode optical
fiber interface, Tx and Rx through FC/PC Connectors
- -48V input for on-board power
supply
- RS232 interface for connection
to Network Management System, used for configuration and
monitoring of the Opti-Multiplexer system.
- 2 External alarm extensions for
visual and audible alarms.
These alarm
condition except PSU failure, are extended to the bay top by two
potential free make contacts. These alarms, optionally, are also
transmitted over the RS232C serial link.
Ordering
Information
|
S. No. |
Product
Description |
Part No. |
|
1. |
E2
Opti-Multiplexer:
8Mbps Optical Line Terminal and 2/8 Mbps Digital Multiplexer
- Stand Alone
19-inch, Integrated, Rack Mount Version
- RJ-45
Connectors (120 Ohms, balanced) and
- BNC (75 Ohms,
unbalanced)
|
208100-RK |
